Tesla Model S (2015)- fuse box diagram
Year of production: 2015

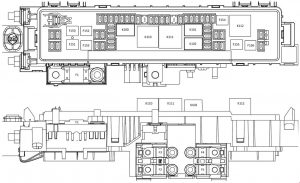

Engine compartment fuse box
| Number | Ampere ratting [A] | Protected circuit |
| F1 | 250 | DCDC input |
| F2 | 60 | Power Steering |
| F3 | — | — |
| F4 | 125 | Cabin Subfeed |
| F100 | 5 | Siren and Intrusion Module |
| F101 | 15 | Driver Assist Forward Camera |
| F102 | — | — |
| F103 | 25 | ABS Valves |
| F104 | 5 | Battery Sensor |
| F105 | — | — |
| F106 | — | — |
| F107 | 5 | Drive Inverter, Rear |
| F108 | 5 | Drive Rail Sense |
| F109 | 10 | Park Assist |
| F110 | 5 | Restraints Control Module |
| F111 | — | — |
| F112 | 5 | Cabin Comfort Systems |
| F113 | 10 | Cabin Air Heater |
| F114 | 10 | Thermal Controller, Inlets, Battery Heater |
| F115 | — | — |
| F116 | 10 | Body Controls Group 1 |
| F117 | 10 | Air Suspension Controls/Valves |
| F118 | — | — |
| F120 | — | — |
| F121 | — | — |
| F122 | 15 | Coolant Pump 3 |
| F123 | 15 | Coolant Pump 2 |
| F124 | 10 | Windshield Wiper De-Ice |
| F125 | 10 | Contactor Power |
| F126 | — | — |
| F127 | — | — |
| F130 | 15 | Driver Assist Forward Radar |
| F131 | — | — |
| F132 | 5 | Drive Inverter, Front |
| F133 | — | — |
| F134 | — | — |
| F135 | 10 | Driver Assistance Forward Camera Defog |
| F136 | 15 | Coolant Pump 4 |
| F137 | 15 | Coolant Pump 1 |
| F138 | 30 | Rear Defrost Grid |
| F139 | — | — |
| F140 | — | — |
| F141 | — | — |
| F142 | 15 | Security Controls and Horns |
| F143 | 30 | Body Controls Group 2 |
| F144 | 20 | Headlamps |
| F145 | 25 | Exterior Lighting |
| F150 | 40 | Condenser Fan, Left |
| F151 | 50 | ABS Pump Motor |
| F152 | — | — |
| F153 | — | — |
| F154 | 40 | Air Suspension Compressor |
| F155 | 40 | Condenser Fan, Right |
| F156 | 40 | iBoost (Brake Assist) |
| F160 | 30 | Cabin Blower |
| F161 | — | — |
| Relay | ||
| K100 | — | |
| K101 | HVAC Rail group 1 | |
| K102 | Rear Defrost Grid | |
| K110 | Drive Rail | |
| K111 | HVAC Rail | |
| K112 | Air Suspension Controller | |

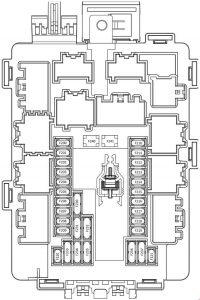

Passenger compartment fuse box
| Number | Ampere ratting [A] | Protected circuit |
| F200 | 5 | Memory Seat Module |
| F201 | 25 | Window Lift Motor, Left Rear |
| F202 | 15 | 12V Accessory |
| F203 | — | — |
| F204 | 25 | Window Lift Motor, Right Front |
| F205 | 25 | Window Lift Motor, Left Front |
| F206 | 25 | Sunroof |
| F207 | 15 | 12V Accessory Outlet |
| F208 | — | — |
| F209 | — | — |
| F210 | 30 | Power Liftgate |
| F211 | 25 | Window Lift Motor, Right Rear |
| F212 | 30 | Electric Park Brake (primary) |
| F213 | 20 | Electric Park Brake (redundant) |
| F214 | — | — |
| F215 | 10 | Steering Wheel Heater |
| F216 | — | — |
| F217 | 20 | Premium Audio Amplifier |
| F218 | 20 | Base Audio Amplifier |
| F2019 | 5 | Glove Box Light, Diagnostics |
| F220 | 5 | Brake Pedal Switch |
| F221 | 5 | Battery Management System |
| F230 | 15 | Seat Heater, Second Row, Right |
| 15 | — | |
| F231 | 15 | Seat Heater, Second Row, Left |
| 15 | Seat Heater, Second Row, Middle | |
| F232 | 15 | Seat Heater, First Row, Left |
| 15 | Seat Heater, First Row, Right | |
| F233 | 10 | Door Controls, Left, Door Handle Left Front |
| 10 | Door Controls, Right, Door Handle, Right Front | |
| F234 | 5 | Door Handle, Left Rear |
| 5 | Door Handle, Right Rear | |
| F235 | 10 | Gateway / Center Display |
| 10 | Charging Systems | |
| F236 | 5 | Steering Angle / Column |
| 5 | Radio, Vanity Lights, Rear View Mirror | |
| F237 | 5 | Instrument Cluster |
| 5 | iBooster | |
| F240 | 30 | Seat Motors, Right Front |
| F241 | 30 | Seat Motors, Left Front |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
