Lincoln Navigator (2018 – 2019) – fuse box diagram
Year of production: 2018, 2019

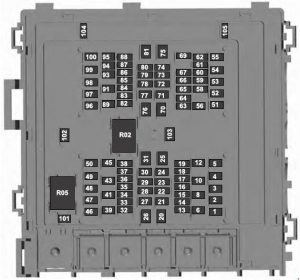

Engine Compartment Fuse Box
| No. | A | Circuit Protected |
| 1 | 25 | Horn |
| 2 | 50 | Fan 1 |
| 3 | 30 | Front wiper motor |
| 4 | – | Not used |
| 5 | 30 | Starter relay |
| 6 | 20 | Power point #1 |
| 8 | 20 | Power point #2 |
| 10 | 5 | Rain sensor |
| 12 | – | Not used |
| 13 | 10 | 4X4 module, Heated backlite, Heated mirror relay coil, Heated wiper park relay coil, Transmission isolation relay coil |
| 14 | 15 | Transmission coil module |
| 15 | 15 | RH-LDM, LH-LDM, Voltage quality module, Blindspot information system, Cruise control module, Tailgate applique, Image processing module B |
| 16 | 10 | Powertrain control module (PCM) run/start feed |
| 17 | 10 | Anti-lock brake system (ABS) run/start feed |
| 18 | 10 | Electronic power assist steering, run/start feed |
| 19 | – | Not used |
| 20 | 40 | Front blower |
| 21 | 40 | Passenger seat motors |
| 22 | 20 | Not used |
| 23 | 10 | Alternator A-line |
| 24 | 30 | Trailer brake control module |
| 25 | 50 | Body control module power 1 |
| 26 | 50 | Electronic fan 3 |
| 27 | 40 | Driver seat motors |
| 28 | 15 | Rear heated seats |
| 29 | 10 | 4×4 integrated wheel end solenoid |
| 30 | 2 5 | Trailer tow class ll-IV battery charge |
| 31 | 50 | Power folding seat module |
| 32 | 10 | A/C clutch |
| 33 | – | Not used |
| 34 | – | Not used |
| 35 | 20 | Vehicle power 4 |
| 36 | 10 | Vehicle power 3 |
| 37 | 25 | Vehicle power 2 |
| 38 | 25 | Vehicle power 1 |
| 39 | – | Not used |
| 41 | 50 | Inverter |
| 43 | 20 | Trailer tow light module class ll-IV |
| 45 | 20 | Front/rear washer pump |
| 46 | 7.5 | Family entertainment system |
| 47 | – | Not used |
| 48 | – | Not used |
| 49 | – | Not used |
| 50 | 30 | Fuel pump |
| 51 | 20 | Power point #3 |
| 52 | 50 | Body control module (BCM) voltage quality monitor (VQM) |
| 53 | 25 | Trailer tow park lamps relay |
| 54 | 40 | Electronic limited slip differential (ELSD) relay |
| 55 | 40 | Auxiliary blower |
| 56 | 20 | Power point #4 |
| 58 | 5 | Front driver and passenger seats – belt tension reducer |
| 59 | – | Not used |
| 60 | 5 | Lincoln start lamp |
| 61 | 25 | Right-hand enhanced exterior lighting (EEL) module (R64) |
| 62 | 25 | Left-hand enhanced exterior lighting (EEL) module (R64) |
| 63 | 25 | 4X4 module |
| 64 | – | Not used |
| 65 | – | Not used |
| 66 | – | Not used |
| 67 | – | Not used |
| 69 | – | Not used |
| 70 | 40 | Anti-lock brake system (ABS) / park brake module |
| 71 | 25 | 4X4 module |
| 72 | – | Not used |
| 73 | – | Not used |
| 74 | 10 | Trailer tow backup lamps |
| 75 | – | Not used |
| 76 | 50 | Body control module (BCM) run power 2 |
| 77 | 30 | Climate control (heated/vented) seat module |
| 78 | 20 | Not used |
| 79 | – | Not used |
| 80 | 10 | Heated wiper park |
| 81 | – | Not used |
| 82 | – | Not used |
| 83 | 15 | Transmission control module (TCM) power |
| 84 | – | Not used |
| 85 | – | Not used |
| 86 | 5 | USB smart charger #5 |
| 87 | 5 | USB smart charger #3 |
| 88 | 10 | Multi contour seats relay |
| 89 | 40 | Power running boards |
| 91 | 30 | Power liftgate module |
| 93 | 15 | Heated mirrors |
| 94 | 5 | USB smart charger #1 |
| 95 | 10 | USB smart charger #2 |
| 96 | 30 | Rear wiper motor relay |
| 97 | 40 | Intercooler puller fan relay |
| 98 | 15 | Transmission oil pump |
| 99 | 40 | Heated backlight |
| 100 | 20 | Power point #5 |
| 101 | 25 | Electric fan 2 |
| 102 | – | Not used |
| 103 | 20 | Not used (spare) |
| 104 | – | Not used |
| 105 | – | Not used |
| Relay | ||
| R02 | Electric fan 2 | |
| R05 | Powertrain control module (PCM) | |

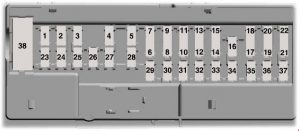

Passenger compartment fuse panel
| No. | A | Circuit Protected |
| 1 | – | Not used |
| 2 | 7.5 | Driver seat switch |
| 3 | 20 | Driver door unlock |
| 4 | 5 | Trailer brake controller (TBM) |
| 5 | 20 | Revel II amplifier |
| 6 | 10 | Not used (spare) |
| 7 | 10 | Not used (spare) |
| 8 | 10 | Not used (spare) |
| 9 | 10 | Rear seat entertainment module (RSEM), Automatic heads up display |
| 10 | 5 | Wireless accessory charger module (WACM), Hands free liftgate module, Power liftgate module Logic (PLGM) |
| 11 | 5 | Combined sensor module (CSM), Keypad |
| 12 | 7.5 | Cluster, Smart datalink connector Logic (SDLC), Electronic control panel (ECP) |
| 13 | 7.5 | Steering column control module (SCCM) (Logic), Gear shift module (GSM) |
| 14 | 10 | Extended power mode module (EPM), Brake Switch |
| 15 | 10 | Smart datalink connector Power (SDLC) |
| 16 | 15 | Liftglass release relay |
| 17 | 5 | Telematics control unit – modem |
| 18 | 5 | Push-button start switch |
| 19 | 7.5 | Not used (spare) |
| 20 | 7.5 | Headlamp control module (HCM) |
| 21 | 5 | In-car temperature and humidity sensor |
| 22 | 5 | EC mirror, 2nd row heated seat module |
| 23 | 10 | Moonroof (logic), Inverter (LIN logic), Power window switch, Power mirror switch, DVD player (if equipped) |
| 24 | 20 | Central lock relay, Central unlock relay |
| 25 | 30 | Left front door zone module (DZM) |
| 26 | 30 | Right front door zone module (DZM) |
| 27 | 30 | Moonroof- Tilt, Vent, Slide |
| 28 | 20 | Revel II Amp |
| 29 | 30 | Left rear door zone module (DZM) |
| 30 | 30 | Right rear door zone module (DZM) |
| 31 | 15 | Adjustable column and pedal memory module (CAPM) |
| 32 | 10 | Accessory protocol interface module (APIM) (Media Gateway Module or SYNC), Drive mode switch module (DMSM) (if equipped), Radio frequency transceiver module (RTM), Rear HVAC control |
| 33 | 20 | Audio control module (ACM), Rear audio control module (RACM), Remote CD mechanism (if equipped) |
| 34 | 30 | Run/start relay |
| 35 | 5 | Extended power mode module (EPM) |
| 36 | 15 | Image processing module A (IPMA), Automated Park Assist Module Continuous control damping module (CCD Module) |
| 37 | 20 | Heated steering wheel |
| 38 | 30 | Circuit Breaker: Left rear power window, Right rear power window |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
